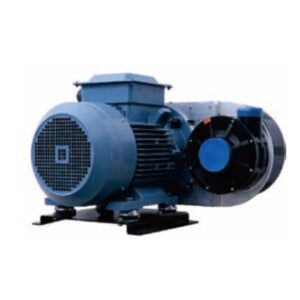

TKS
The TKS is a high-performance centrifugal radial blower featuring a CFD-optimized impeller and casing design that delivers exceptional energy efficiency. It offers energy savings of up to 60–70% compared to traditional blowers.
The blower’s outer casing is coated with Teflon, providing enhanced durability and resistance for operation in mildly acidic environments.
Key features of the TKS range include:
- Oil-free, non-pulsing airflow for smooth and stable operation.
- High capacity, with airflow rates up to 2,298 m³/h and positive pressures reaching up to 224 mBar.
- IE3 electric motors are available on request, as well as special voltage motor options.
- A mounting design that enables a compatible motor swap with all IEC frame electric motors.
- NEMA-compliant units available upon request.
Our local range features a single-blower head design.
TKS Technical Data
| Model | Power (Kw) | Voltage (V) | Max Flow (m³/h) | Max Vac (mbar) | Max Press (mbar) | Ambient Temp °C | Air Temp Range °C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| TKS 70 – 4kW | 4 | 400 | 860 | -224 | 241 | -12 - 40 | <52°C | 66 |
| TKS 70 – 5.5kW | 5.5 | 400 | 1075 | -224 | 241 | -12 - 40 | <52°C | 93 |
| TKS 85 – 7.5kW | 7.5 | 400 | 1247 | -224 | 259 | -12 - 40 | <52°C | 75 |
| TKS 85 – 11kW | 11 | 400 | 1462 | -224 | 259 | -12 - 40 | <52°C | 135 |
| TKS 100 – 11kW | 11 | 400 | 1720 | -220 | 241 | -12 - 40 | <52°C | 88 |
| TKS 100 – 15kW | 15 | 400 | 1548 | -220 | 241 | -12 - 40 | <52°C | 165 |
| TKS 150 – 15kW | 15 | 400 | 2040 | -270 | 290 | -12 - 40 | <52°C | 95 |
| TKS 150 – 18.5kW | 18.5 | 400 | 2298 | -270 | 290 | -12 - 40 | <52°C | 185 |
